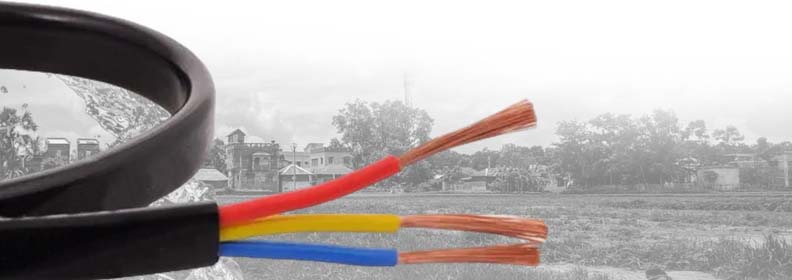

3/4 Core Flat Submersible Cable
Application
Ideal for irrigation pumps, drinking water supply pumps, offshore drilling rigs, firefighting equipment, sewage treatment plants and sea water handling equipment. These cables are specially designed for submersible pump connections where reliability and durability in wet conditions are essential.

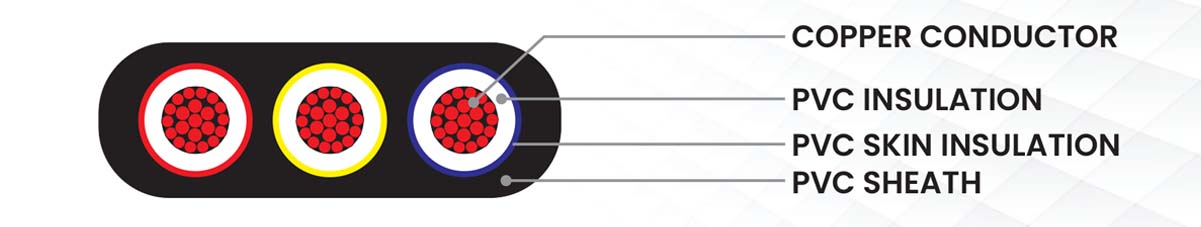

Conductor
Thin strands of electrolytic copper having the highest purity and least resistance are multi drawn for uniformity in dimension and flexibility, ensuring efficient conductivity and long service life.
Insulation
The conductors are insulated with specially formulated super flexible PVC compound having high insulation resistance values, ensuring safe operation even in demanding underwater environments.
Sheathing
The three cores are laid in parallel position and sheathed with high abrasion resistant PVC compound which is impervious to grease, oil, water and other environmental contaminants.
Benefits
Tough and flexible cable providing excellent safety and durability. Offers superior moisture and weather resistance, high abrasion resistance and reliable performance across a wide temperature range from -15°C to 70°C. High purity electrolytic copper ensures efficient power transmission and energy savings.
Sizes, Dimensions & Ratings
| Conductor | PVC Insulation | PVC Sheath | Conductor Resistance at 20°C (Max) |
Current Rating at 40°C |
||||
|---|---|---|---|---|---|---|---|---|
| Nominal Area | No. & Dia. of Strands | Nominal Thickness | Nominal Core Diameter | Nominal Thickness | Approx Overall Dimension | |||
| Thickness (T) | Width (W) | |||||||
| SQ.MM | Nos/MM | MM | MM | MM | MM | MM | Ω/km | AMPS |
| 1.5 | 22 / 0.30 | 0.8 | 3.25 | 1.15 | 6.0 | 12.8 | 12.1 | 16 |
| 2.5 | 36 / 0.30 | 0.9 | 3.84 | 1.15 | 6.4 | 14.6 | 7.41 | 22 |
| 4 | 56 / 0.30 | 1.0 | 4.5 | 1.15 | 7.4 | 16.8 | 4.95 | 29 |
| 6 | 84 / 0.30 | 1.0 | 5.3 | 1.15 | 7.9 | 18.7 | 3.30 | 37 |
| 10 | 140 / 0.30 | 1.0 | 6.5 | 1.4 | 9.9 | 23.7 | 1.91 | 51 |
| 16 | 224 / 0.30 | 1.0 | 8.0 | 1.4 | 11.4 | 28.0 | 1.21 | 68 |
| 25 | 350 / 0.30 | 1.2 | 10.1 | 2.0 | 14.7 | 35.5 | 0.780 | 86 |
| 35 | 490 / 0.30 | 1.2 | 11.5 | 2.0 | 16.2 | 39.5 | 0.554 | 110 |
| 50 | 703 / 0.30 | 1.4 | 13.6 | 2.4 | 18.3 | 45.5 | 0.386 | 125 |
