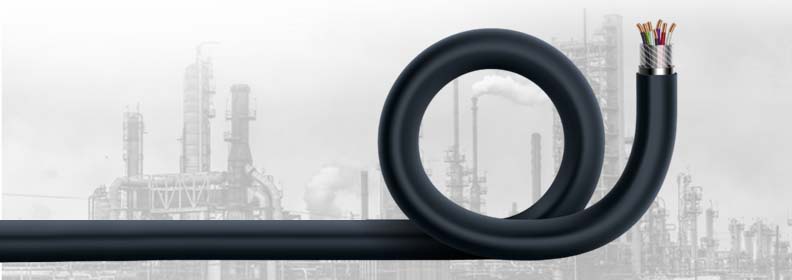

INDUSTRIAL MULTICORE FLEXIBLE CABLES (Single and Double sheathed)
Application
Multicore flexible cables are used in applications requiring high flexibility and multiple conductors, such as in industrial machinery and control systems.
Conductor
Thin strands of electrolytic copper or aluminium having highest purity, least resistance are multi drawn for uniformity in dimension and flexibility.

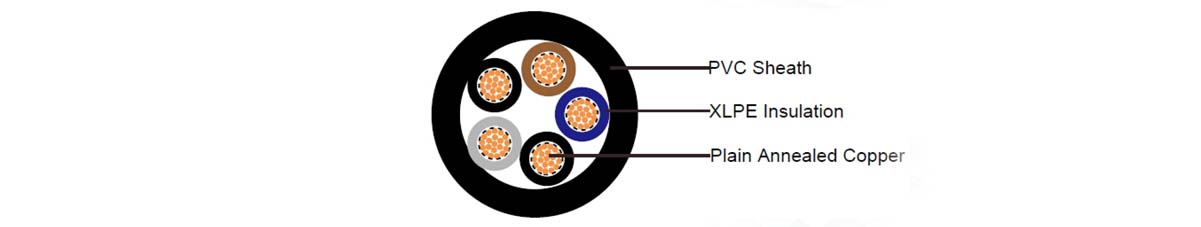

Insulation
The conductors are insulated with specially formulated super flexible PVC or XLPE compound having high insulation resistance values.
Benefits
Multicore flexible cables offer versatility and ease of installation in tight or movable spaces, accommodating complex wiring needs. They provide reliable performance and durability, even under constant bending and vibrations, making them ideal for dynamic environments.
Sizes, Dimensions & Ratings
| Conductor Area | No. & Size of Each Strand | Max. DC Resistance at 20°C | Insulation Thickness Nominal | Sheath Thickness Nominal | Overall Diameter Approx | Current Rating | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 Core | 3 Core | 4 Core | 5 Core | 2 Core | 3 Core | 4 Core | 5 Core | |||||
| SQ.MM | MM | Ohm/km | MM | MM | MM | MM | MM | MM | MM | MM | MM | Amps |
| 0.5 | 16/0.20 | 39.0 | 0.6 | 0.9 | 0.9 | 0.9 | 0.9 | 6.2 | 6.6 | 7.0 | 7.5 | 5 |
| 0.75 | 24/0.20 | 26.0 | 0.6 | 0.9 | 0.9 | 0.9 | 0.9 | 6.6 | 6.9 | 7.4 | 8.0 | 8 |
| 1 | 32/0.20 | 19.5 | 0.6 | 0.9 | 0.9 | 0.9 | 1.0 | 7.1 | 7.3 | 8.0 | 8.9 | 13 |
| 1.5 | 30/0.25 | 13.3 | 0.6 | 0.9 | 0.9 | 1.0 | 1.0 | 7.5 | 8.0 | 9.0 | 9.7 | 17 |
| 2.5 | 50/0.25 | 7.98 | 0.7 | 1.0 | 1.0 | 1.0 | 1.0 | 9.0 | 9.4 | 10.4 | 11.3 | 24 |
| 4 | 56/0.30 | 4.95 | 0.8 | 1.0 | 1.0 | 1.0 | 1.1 | 10.0 | 10.6 | 11.8 | 13.0 | 30 |
| 6 | 84/0.30 | 3.30 | 0.8 | 1.1 | 1.1 | 1.1 | 11.2 | 12.3 | 13.6 | 38 | ||
| 10 | 140/0.30 | 1.91 | 1.0 | 1.3 | 1.4 | 1.4 | 14.8 | 16.0 | 17.6 | 52 | ||
| 16 | 126/0.40 | 1.21 | 1.0 | 1.4 | 1.4 | 1.4 | 17.0 | 18.2 | 24.5 | 70 | ||
| 25 | 196/0.40 | 0.78 | 1.2 | 1.4 | 1.5 | 1.7 | 20.3 | 21.9 | 27.5 | 88 | ||
| 35 | 276/0.40 | 0.554 | 1.2 | 1.6 | 1.6 | 1.6 | 23.1 | 24.8 | 32.8 | 110 | ||
| 50 | 396/0.40 | 0.386 | 1.4 | 2.0 | 2.0 | 2.0 | 27.8 | 29.7 | 37.8 | 145 | ||
