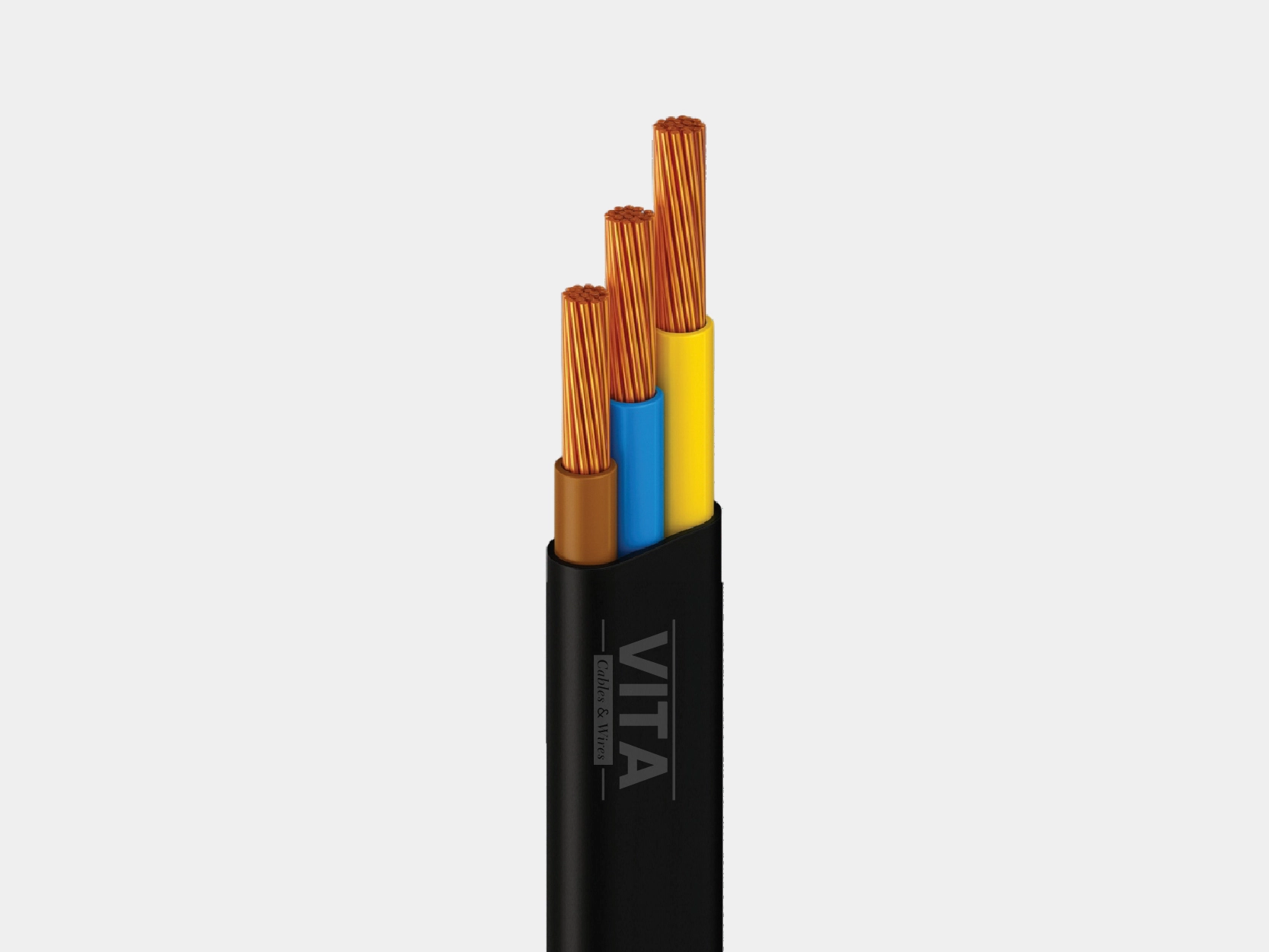

Vita Cable PVC Insulated Submersible Flat Cables are specifically designed for submersible pump installations, deep well applications, and borewell motor wiring. The flat construction allows for easy winding and installation while providing superior moisture and abrasion resistance. Available in 3-core and 4-core configurations with voltage rating up to 1100V.
Key Features
Flat cable construction for easy
installation in boreholes
High PVC insulation for moisture
resistance
Suitable for submersible pump motor
wiring
1100V voltage rating for high-capacity
applications
Copper conductor (99.97% purity)
Available in 3-core and 4-core options
Cross-section range: 1.0 sqmm to 70 sqmm
BIS compliant & ISO certified
manufacturing
2. Technical Specifications
2.1 Conductor Specifications
| Parameter | Specification | Standard Reference |
|---|---|---|
| Conductor Material | Electrolytic Grade Copper | IS 694:2016 |
| Conductor Type | Stranded (Class 2) | IS 694:2016 |
| Copper Purity | 99.97% minimum | IS 694:2016 |
| Cross-Section Range | 1.0 sqmm to 70 sqmm | --- |
| Number of Strands | Size dependent | IS 694:2016 |
2.2 Insulation Specifications
| Parameter | Specification | Standard Reference |
|---|---|---|
| Insulation Material | PVC (Polyvinyl Chloride) | IS 694:2016 |
| Insulation Color | Black with core identification | IS 694:2016 |
| Core Configuration | 3-Core or 4-Core Flat | IS 694:2016 |
| Operating Temperature | -5°C to +60°C continuous | IS 694:2016 |
| Insulation Resistance | ≥ MΩ/km at 20°C | IS 694:2016 |
2.3 Voltage & Current Ratings (3-Core Configuration)
| Cross-Section (sqmm) | Voltage Rating | Current Rating (Amps @ 60°C) | Resistance (Ω/km) |
|---|---|---|---|
| 1.0 | 1100V | 10A | 18.1 |
| 1.5 | 1100V | 15A | 12.1 |
| 2.5 | 1100V | 20A | 7.41 |
| 4.0 | 1100V | 26A | 4.62 |
| 6.0 | 1100V | 34A | 3.08 |
| 10 | 1100V | 46A | 1.83 |
| 16 | 1100V | 61A | 1.15 |
| 25 | 1100V | 80A | 0.727 |
| 35 | 1100V | 106A | 0.524 |
| 50 | 1100V | 134A | 0.387 |
| 70 | 1100V | 171A | 0.268 |
Note: Current ratings for 3-core are based on IS 694:2016 at ambient temperature of 30°C with 30°C rise, 4-core ratings are 5-10% lower due to increased core density.
2.4 Physical Specifications
| Cable Construction | Flat (3-core or 4-core) |
| Outer Width | 12 mm (1.0-1.5 sqmm) to 45 mm (70 sqmm) |
| Outer Thickness | 8 mm (1.0-1.5 sqmm) to 18 mm (70 sqmm) |
| Weight Range | 3.5 kg/km (1.0 sqmm) to 200 kg/km (70 sqmm) |
| Minimum Bending Radius | 4 x Outer Width (at -5°C) |
| Tensile Strength | ≥5 MPa (insulation) |
| Elongation at Break | ≥ 200% (insulation) |
3. Standards & Certifications
- IS 694:2016 - PVC insulated cables for rated voltages up to and including 450/750V
- IS 8130 - Submersible motor cables (where applicable)
- BIS Certified - Bureau of Indian Standards certification
- ISO 9001:2015 - Quality Management System certified manufacturing
4. Applications
- Submersible Pump Installations: Deep well and borewell motor wiring
- Agricultural Applications: Farm pump installations, irrigation systems
- Water Supply Systems: Municipal and industrial water supply
- Underground Installations: Protected underground wiring
- Wet Environments: Applications requiring moisture resistance
5. Installation Guidelines
- Bending Radius: Do not exceed 4 x outer width of cable
- Load Rating: Do not exceed current ratings specified in Section 2.3
- Grounding: Ensure proper earthing for motor wiring
- Storage: Store in cool, dry place away from sunlight (shelf life: 24 months)
- Termination: Use appropriate lugs and connectors for conductor size
- Protection: Protect from mechanical damage during installation
